5-Axis       +0.03mm     3-12kW      40%

RTCP simultaneous           Repeatability                           Fiber laser power            Less floor space

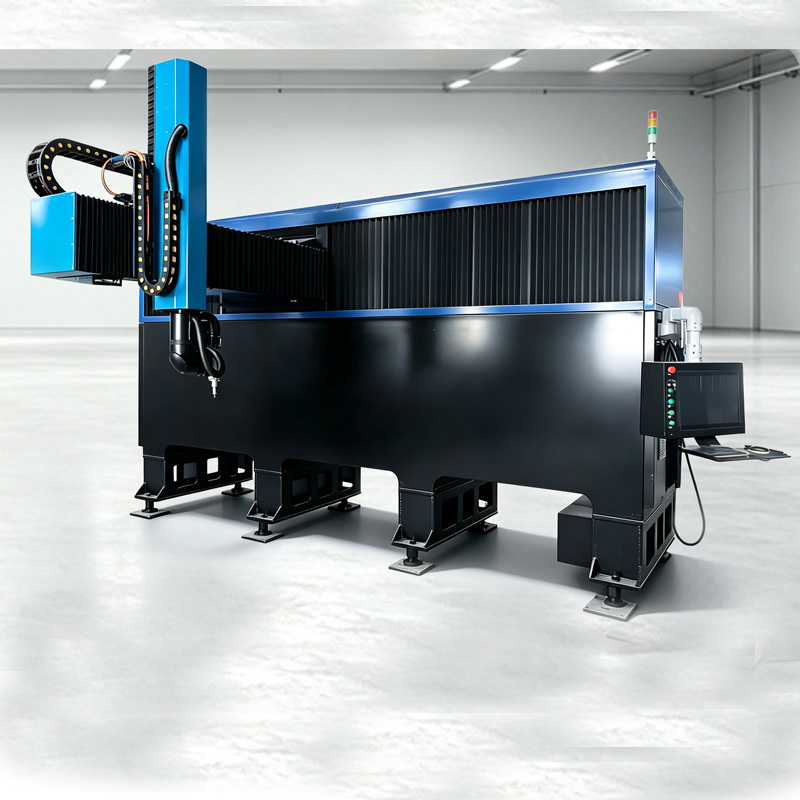

01 Compact cantilever

Single-column structure, three-side open load / unloadabout 40% less floor than a gantry.

02 Fast & stable

Zero-backlash linear-motor drive with 5-axis RTCP - upto 1.75x the per-part output of robot cutting.

03 One-setup 3D machining

Trim, pierce, bevel and weld-prep in a single clamping;RTCP holds the beam normal to the surface.

04 Smart & connected

Open G-code control, OPC UA cloud monitoring andMES-ready automation for unmanned lines.

Dual beam-path cutting head

Fiber laser with high beam quality -internal and external beam-path heads plus an intelligent head,

selectable tomatch the part and the production tempo.

Internal path                                                                                3-6 kW

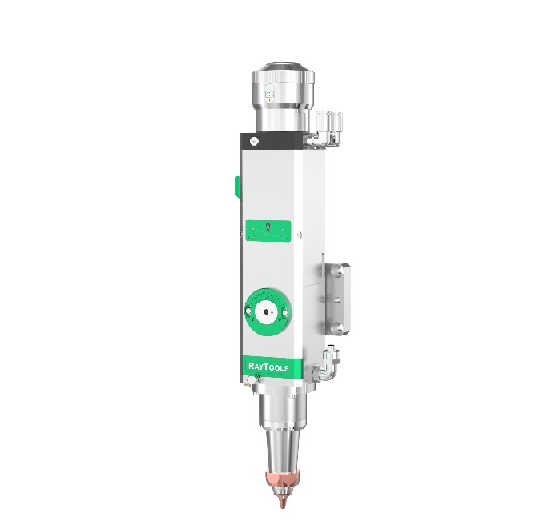

Beam routed inside the head - compact, sealed anddust-proof with few maintenance points. Ideal for

high-tempo continuous cutting.

External path                                                                3–12 kW

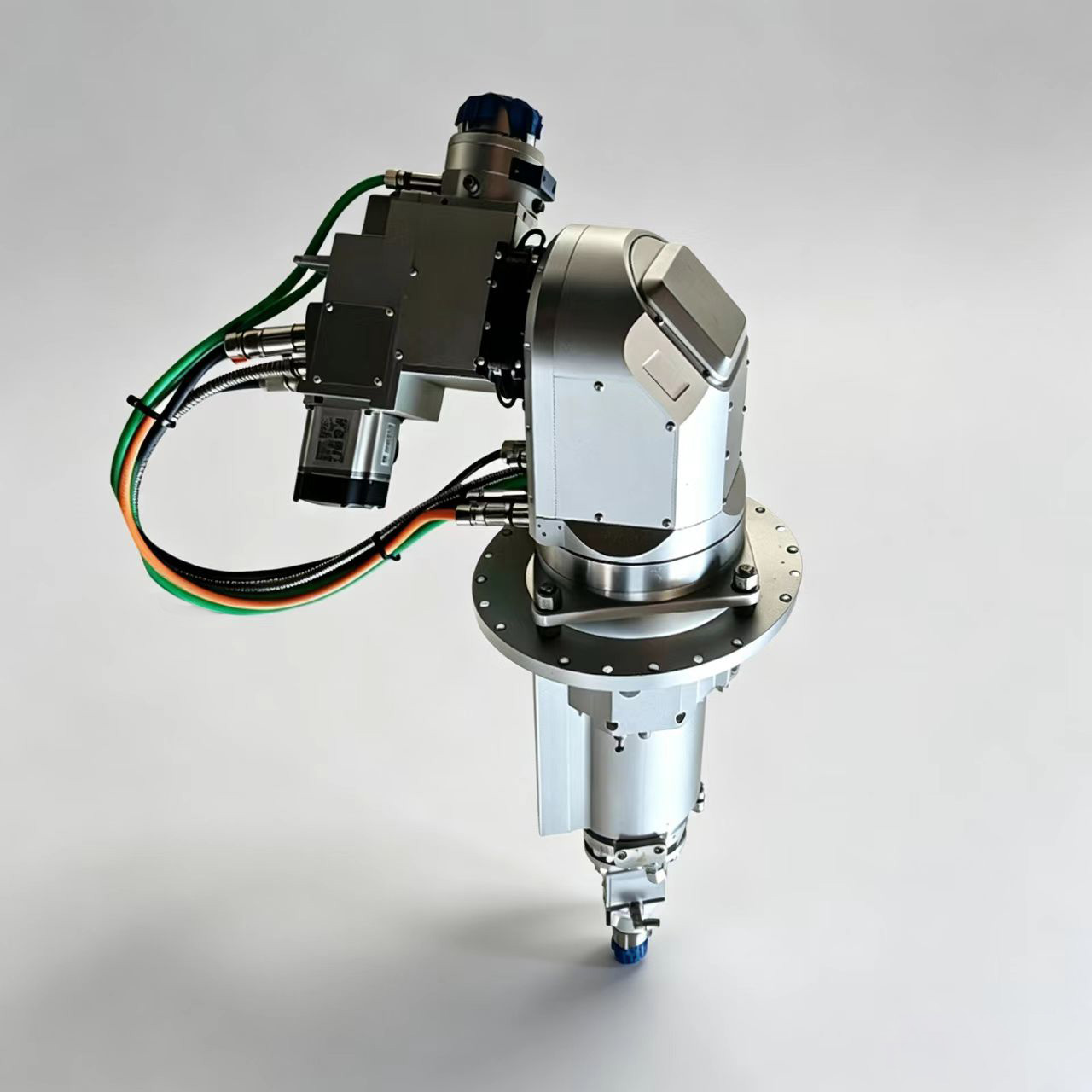

Beam guided via external conduit / mirrors — flexible  routing, wide spatial-posture reach, easy maintenance

and scales to high power.

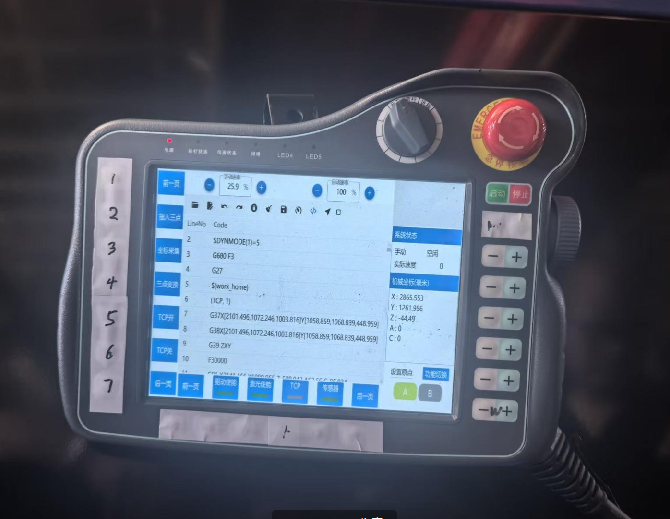

Teach-pendant quick programming

A robot-style teach function for cutting and welding - program on the machine, no CAD model required.

 No digital model needed - teach on-site through the

pendant's physical buttons and touchscreen.

Built-in macros - standard holes, rectangles andpolylines called with one click.

Fast part teach-programming - sharply lowers the

programming barrier and time.

PROCESS CAPABILITY

Trimming

Flexible edge trimming offormed parts - replaces trim dies.

Piercing

Any-angle holes on 3Dsurfaces - accurate andburr-free.

Bevel

5-axis posture cuts weldbevels for one-shotwelding.

Cut + Weld

Cutting and laser weldingintegrated on one platform.

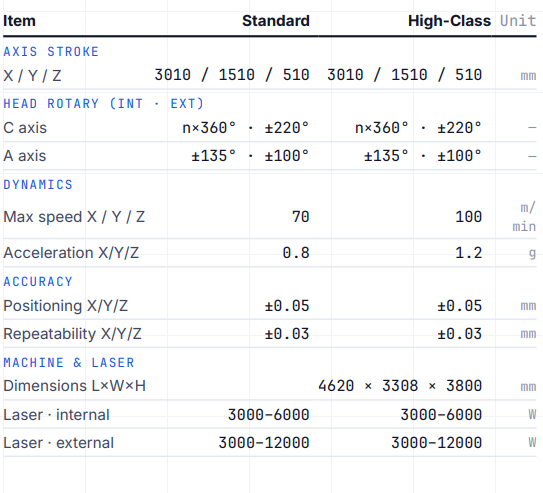

TECHNICAL SPECIFICATIONS

EFFICIENCY VS ROBOT

43% time saved on the same part(3'12" 1'50") ·≈ 1.75x output

MAX THICKNESS @ 6 KW. mm

Carbon steel                                  ≤12.5

Stainless                                         ≤8

Aluminum                                      ≤6

Brass/copper                                 ≤4
